Mud Cleaner GRQJ250×2-100×10
GREEN GR Series Mud Cleaner is the second or third stage separation equipment for drilling fluids which deals with the mud being treated by the first grade separation equipment.
Online Inquiry
Consultation E-mail: sales@green-sep.com
GREEN GR Series Mud Cleaner is the second or third stage separation equipment for drilling fluids, which deals with the mud being treated by the first grade separation equipment.
Application:
GREEN GR Series hi-volume mud cleaner is the second or third stage separation equipment for drilling fluids, which deals with the mud being treated by the first grade separation equipment. The barite will be recovered and cuttings which are bigger than barite will be removed. Then the barite in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed.GREEN is a mud cleaner supplier in China.GREEN GR Series Mud Conditioner can be used alone, and its screen can be combined with the first stage solid control equipment as a parallel standby shale shaker.
Mud Cleaner Features & Benefits:

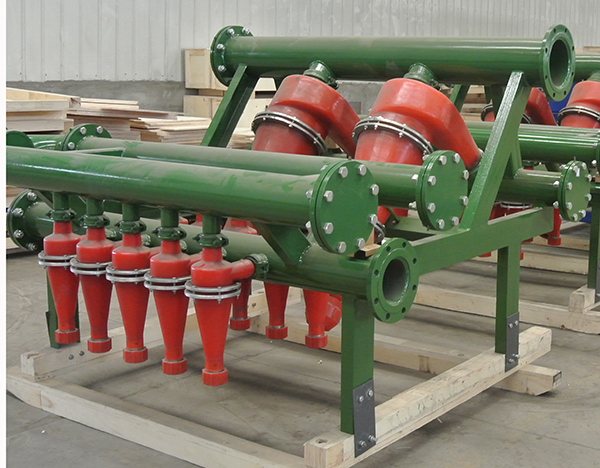

1. Polyurethane (PU) Material, high-chromium cast iron or ceramic for desander and desilter cones.
2. Desander cones can be installed between one and three 10"desander cones, each cone can process 500GPM and makes a separation between 45 and 75 microns.

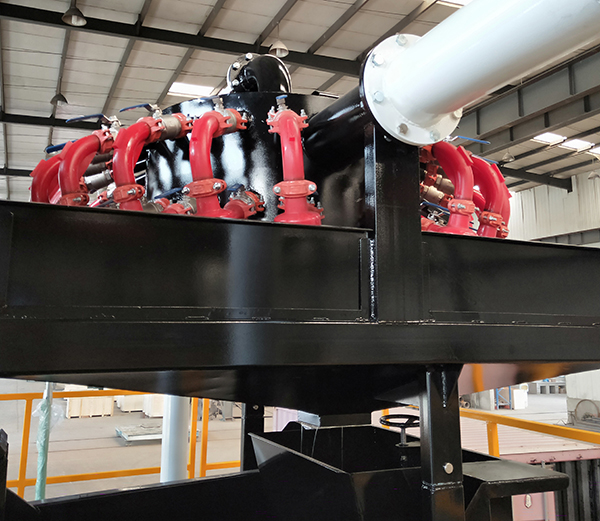

3. Desilter cones can be installed between eight and twenty 4"or 5"desilter cones ,each cone can process 80 GPM, and makes a separation between 15 and 45 microns.
4. Mechanical Deck Adjustable while operation for reliable performance.
5. Compact design with small footprint, with top feed and weir feed two option.
6. Hook-strip shaker screen for fast screens changing screens
A professional supplier which specialized in solid-liquid separation equipment in the energy industry, mainly supply drilling shale shaker, decanter centrifuge, mud cleaner, desander and desilter, mud agitator, vacuum degasser, shaker screen, cyclones, slurry pump and solid control equipments spare parts products etc.
Mud Cleaner specifications
Mud Cleaner specifications
| Mud Cleaner | |||
|---|---|---|---|
| Mud Cleaner | Desander | Desilter | |
| Model | GRQJ250×2-100×10 | GRCS250×2 | GRCN100×10 |
| Mode shape | Linear Motion | Balanced Elliptical Motion | Balanced Elliptical Motion |
| Motor type | Explosion-proof | Explosion-proof | Explosion-proof |
| power（kW）/(hp) | 2*1.72kW(2*2.3hp)(Italy Oli) | 1*0.75kw(1hp) | 1*0.75kw(1hp) |
| Vibration intensity（G-Force） | ≤7.4(Adjustable) | ≤8.3(Adjustable) | ≤8.3（Adjustable） |
| Total screen area（㎡）/(ft2) | 2.2/24 | 0.78/8.4 | 0.78/8.4 |
| Screen inclination adjustment range( °) | -1～+5 | Non-adjustable | Non-adjustable |
| indenter（m/ft） | 23/75 | 23/75 | 23/75 |
| Screen category | Hook strip | Soft Hook | Soft Hook |
| Screen size（mm)/(in) | 700*1050/27.5*41 | 600*1450/24*57 | 600*1450/24*57 |
| Desanding Cyclone Specifications | 10" | 10" | N/A |
| The number of desander cyclones | 2 | 2 | |
| Desanding cyclone separates particle size（μm） | 44～74 | 44～74 | |
| Desilting Cyclone Specifications | 4" | N/A | 4" |
| Number of desilting cyclones | 10 | 10 | |
| Desilting Cyclone Separating Granularity（μm） | 15～44 | 15～44 | |
| noise（dB） | ＜85 | ＜85 | ＜85 |
| sizeL*W*H（mm）/(in) | 2448*2943*2508/96*116*98 | 1455*1774*2100/57*70*83 | 1455*2426*1774/57*96*70 |
| weight（kg）/(lbs) | 2380/5248 | 1240/2734 | 1050/2315 |
